IMADE3D

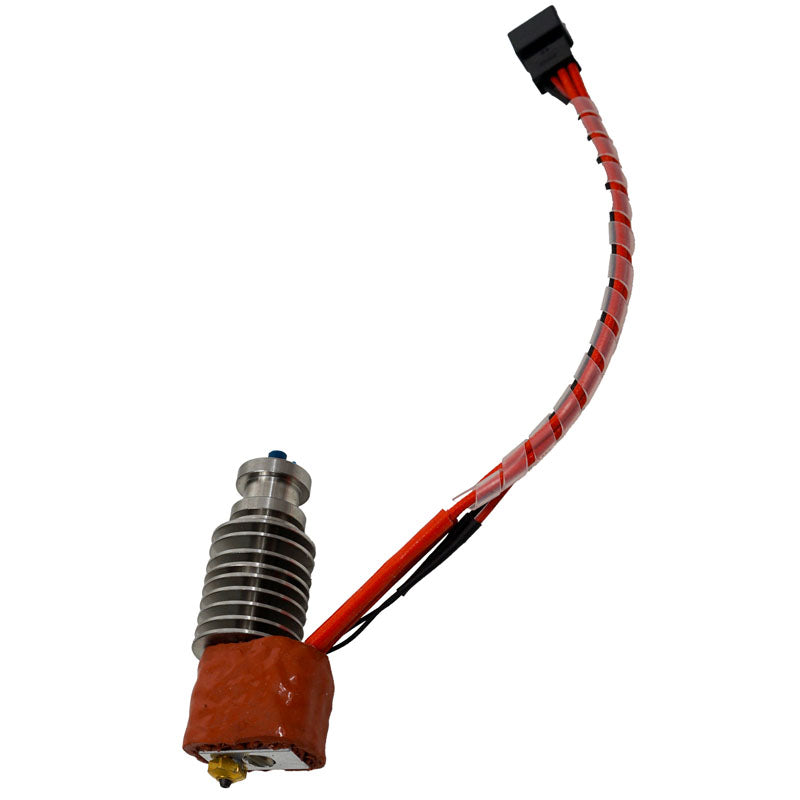

JellyBOX Hot End

JellyBOX Hot End

$84.00 USD
$84.00 USD
Sale Sold out
Tax included.
Nozzle Material (tip)
Nozzle Size

JellyBOX hot-end has a unique construction that combines the V6 Lite sink from E3D with a custom-made IMADE3D heat block. This setup utilizes a long heat zone, a 20mm nozzle ("volcano"), and Capricorn PTFE thermal insulation. The heat cartridge is rated for 12V/40W.

Default Nozzle (comes with the JellyBOX)

  • Material: Brass
  • Size: 0.4 mm
  • Uses: This universal nozzle size is ideal for common prints using PLA, PETG, or TPU filaments. It offers a good balance between print speed and detail.

Nozzle Material Options

  • Brass: Standard for general-purpose printing.
  • Steel: Better for abrasive materials like wood-filled or carbon-filled filaments.
  • Diamond Tip: Superior durability and performance for highly abrasive materials, providing longer life and better print quality.

Nozzle Size and Application

  • 0.25 - 0.3 mm: Ideal for fine, detailed prints. These sizes are more prone to clogging and should be used with high-quality, non-filled filaments.
  • 0.4 - 0.6 mm: Suitable for most common prints, offering a good balance between resolution and print speed. These sizes are versatile and handle a wide range of 3D models effectively.
  • 0.8 - 1.0 mm: Best for large prints requiring minimal retraction. Prints are stronger but have lower resolution. Ideal for projects where speed and strength are prioritized over detail.
